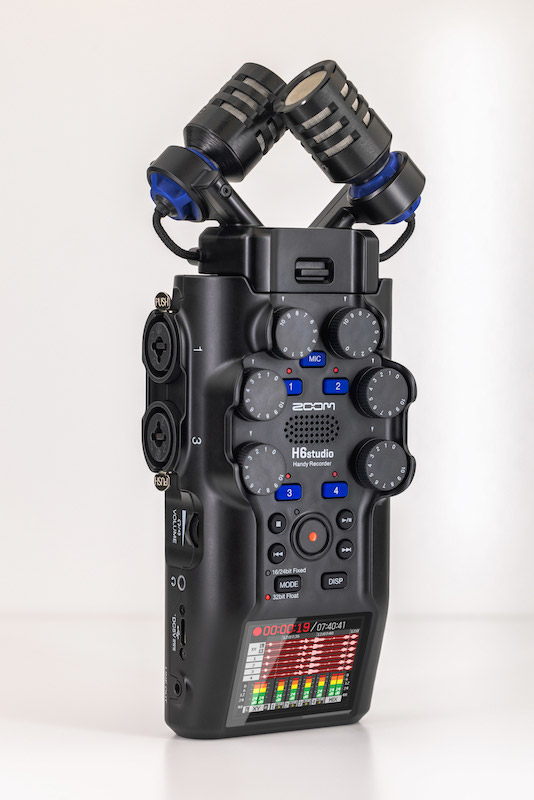

ZOOM H6 Studio

The H6studio features large-diaphragm XY microphones, four studio-grade preamps, and 32-bit float recording with dedicated gain knobs. Built with F-Series technology, it’s the most advanced Handy Recorder to date.



FEATURES:

• 32-bit float and 16/24-bit formats each have their Advantages
  • 32-bit float prevents clipping but requires post-production
  • 16/24-bit eliminates the need for post-processing but requires gain adjustment to prevent clipping
  • The H6studio offers the best of both worlds with 32-bit float and dedicated gain knobs—no clipping and no need for post-production
  • And with the dedicated format switch, you can adapt your workflow quickly
• The H6studio supports sampling rates from 44.1 to 192 kHz
• Capture up to 8 tracks* at once – 6 individual tracks plus a stereo mix
  • Up to 8 tracks (6 inputs + 2 stereo mixes) at 96kHZ
  • Up to 6 tracks (6 inputs) at 192kHZ
• The 19.4mm microphones capture audio with incredible frequency Response and 140 dB max SPL
• Their increased size captures recordings with unmatched depth and clarity
• The H6STUDIO features Zooms F-series preamps, giving your audio unmatched clarity (-127 dBu EIN)
• With dual AD converters and 32-bit float, it delivers an impressive 132dB dynamic range
• The H6studio features “advanced look-ahead” limiters which anticipate potential overloads and prevent distortion before it reaches your track



HEADPHONE OUT
Use the loud 20mW headphone output to monitor or listen back to your recordings in any environment.

LINE OUT
Use the 3.5mm stereo LINE OUT to connect directly to a camera, easily syncing your audio and video.

ONBOARD SPEAKER
The built-in speaker has a maximum output of 250mW for previewing recordings on the spot.

6 TRACKS PLUS A STEREO MIX
Record with sample rates from 44.1 to 192 kHz. The H6studio can capture up to 8 tracks* at once – 6 individual tracks plus a stereo mix. *Stereo mix is only available at 96kHZ

THE NOISE STOPS HERE
Carefully designed RF shielding blocks interference from smartphones and Wi-Fi, while the shock-mounted mics help reduce handling noise.

LIMITERS THAT LOOK AHEAD
The H6studio features “advanced look-ahead” limiters which anticipate potential overloads and prevent distortion before it reaches your track.

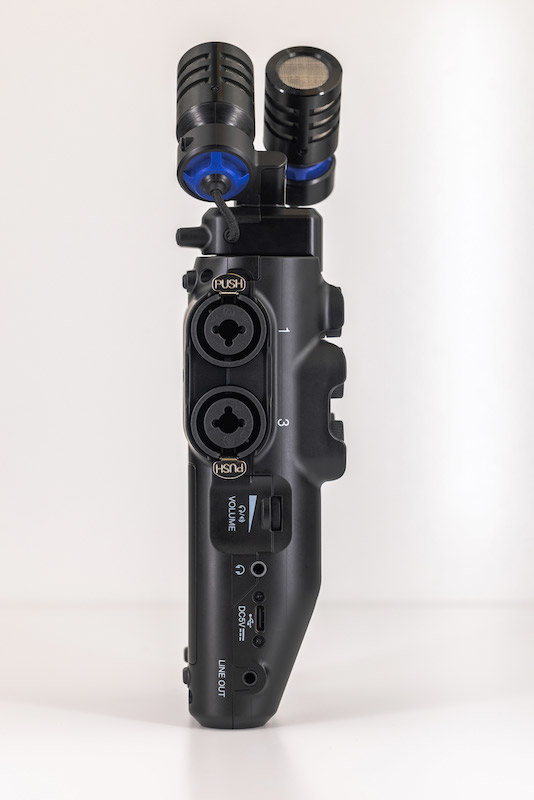

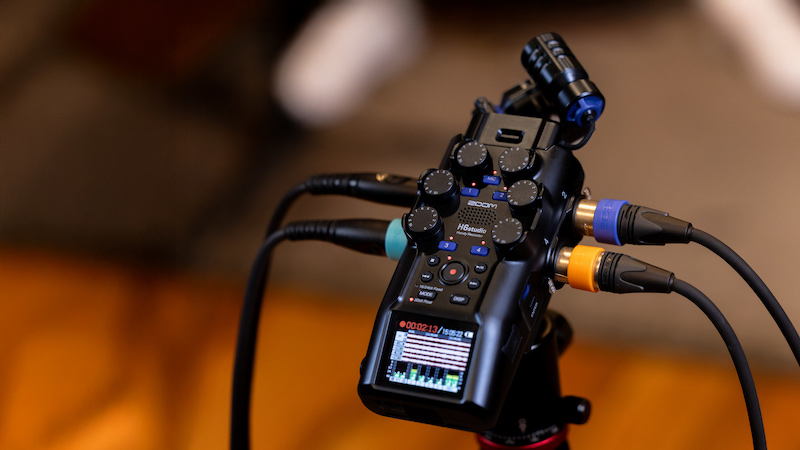

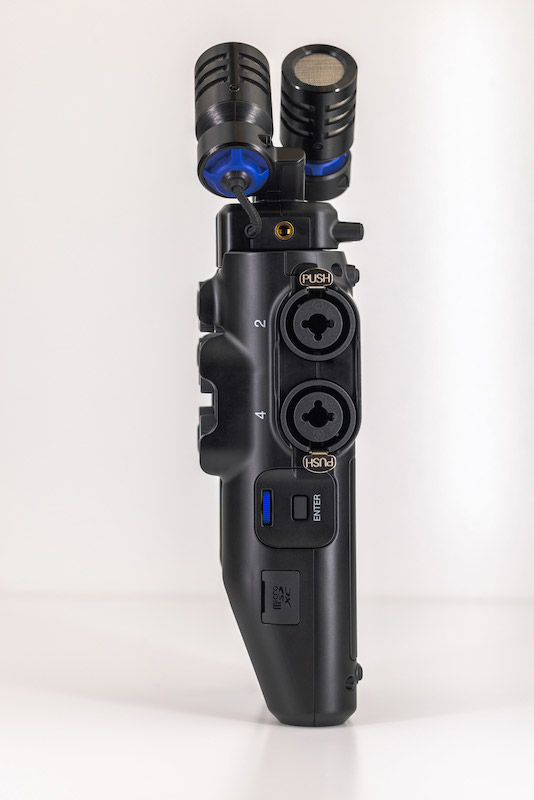

FOUR XLT/TRS INPUTS + STEREO MINI JACK
The H6studio includes four locking XLR/TRS inputs with +48V phantom power and +4dBu line-level support. It also has a stereo mini jack with plug-in power.

NEXT GENERATION CAPSULE SYSTEM
The H6studio’s 3.0 capsule system* supports 32-bit float and gives creators more options to use the right mic for their recording. Use the included mic connector cover when no capsules are needed. *Compatible with SSH-6e, EXH-6e, WLM-1, XYH-6e

WIRELESS CAPSULE
The WLM-1* is a dual-channel wireless system that comes with two transmitters and a receiver. The transmitter’s built-in microphone captures clear, balanced audio at volumes up to 130 dB SPL.

SEE YOUR SOUND IN REAL TIME
See your levels and waveforms at the same time. Tap the DISP key to switch between level meter only or waveform view.



Inputs and Output Channels
Inputs
Mic Capsule	1
MIC/LINE (mono)	4
Outputs
LINE OUT	1
Headphone	1
Built-in speaker (mono)	1
Inputs
XY mic (XYH-5s)
90° XY stereo format
Pickup pattern	Unidirectional
Sensitivity	–41 dB/Pa at 1 kHz
Maximum sound pressure input	140 dB SPL
MIC/LINE (XYH-5s)
Connector	1 stereo mini jack
Input gain	−∞ – +60 dB
Input impedance	2 kΩ or more
MIC/LINE (mono)
Connectors	4 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain	−∞ – +60 dB
Input impedance	MIC: 3 kΩ or more LINE: 3 kΩ or more
Maximum input level	MIC: +4 dBu LINE: +24 dBu
Phantom power	+48 V
Equivalent input noise	–127 dBu or less (IHF-A) at 150Ω input
Outputs
LINE OUT
Connector	1 stereo mini jack
Maximum output level	+1 dBu
Output impedance	110 Ω or less
Headphone
Connector	1 stereo mini jack
Maximum output level	20 mW + 20 mW (when 32 Ω load)
Output impedance	10 Ω or less
Built-in speaker
Type	20 mm × 30 mm elliptical dynamic speaker
Effective maximum output	250 mW
Recorder
Maximum simultaneous recording tracks	8
Maximum simultaneous playback tracks	6
Recording formats	WAV 44.1/48/96/192 kHz 16-bit/24-bit/32-bit float mono/stereo BWF and iXML formats supported
Recording media	microSDHC memory cards microSDXC memory cards
Display	2.00″ full-color LCD (320 × 240)
USB
Connector	USB Type-C *use a USB cable that supports data transfer. USB bus power is supported
Audio interface	USB 2.0 High Speed
Input and output channel	6 in / 2 out (multi) 2 in / 2 out (Stereo)
Sampling frequencies	44.1/48/96 kHz (audio interface only) 44.1/48 kHz (audio interface + onboard recording)
Bit depths	24-bit, 32-bit float
File transfer	USB 2.0 High Speed
Power	4 AA batteries (alkaline, lithium or rechargeable NiMH batteries)AC adapter (ZOOM AD-17): DC 5V/1A • USB bus power is supported.
