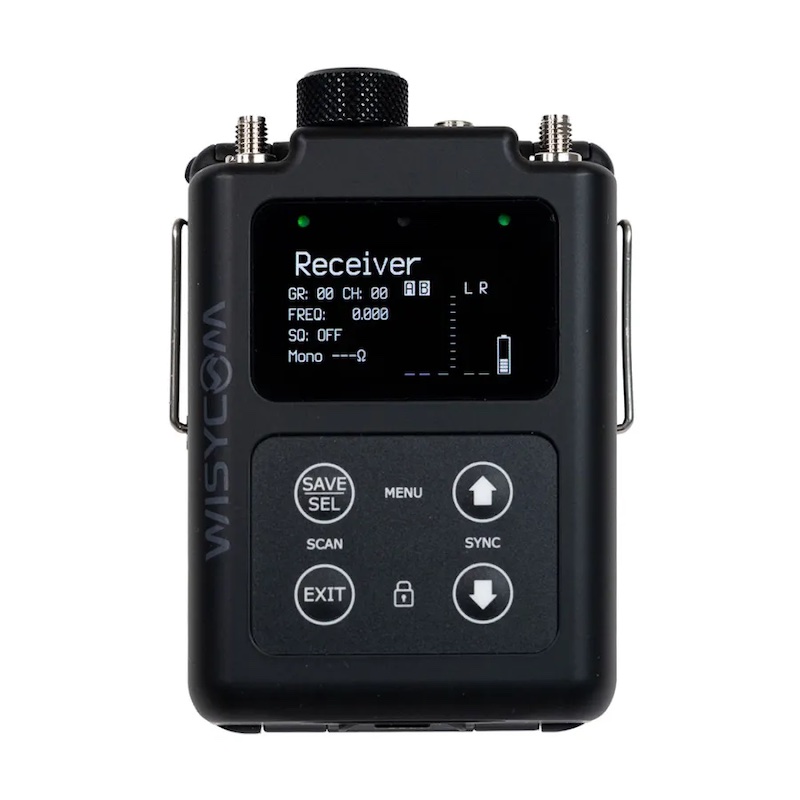

WISYCOM MPR60 – Wideband True Diversity IEM/IFB Receiver
Wisycom MPR60 wideband true diversity IEM/IFB receiver, 470-800 + 823-832 + 940-960 + 1240-1260 MHz
€ 1,300.00 Excl. VAT
Available on backorder

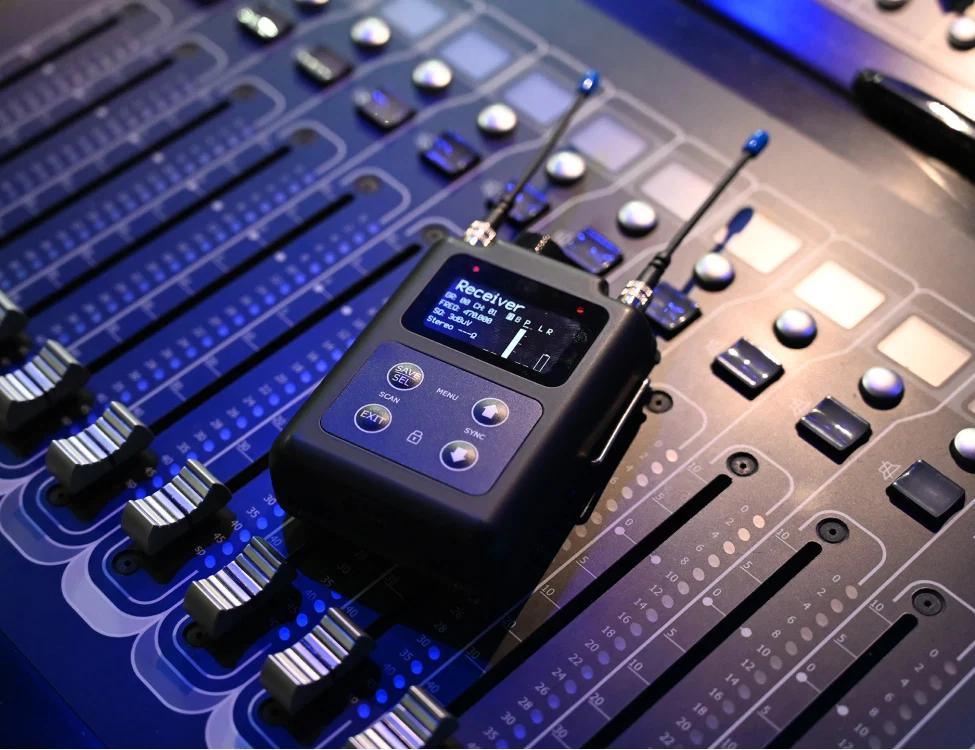

Designed for live events, high-end theater, and large-scale Houses of Worship, as well as Broadcast and Location Sound, the MPR60 is your solution for uncompromised performance.
This receiver features a real TRUE DIVERSITY configuration offering true freedom with unmatched frequency agility.
Just one Unit to Cover the Whole World!
Audio processing can be Stereo IEM, Mono IFB Wideband/Narrowband and 3 channels IFB selectable by the user.
Very easy and versatile thanks to its OLED display, navigation button controls and automatic scan.
FEATURES
- Wideband Frequency Agility: 470-800, 823-832, 940-960, 1240-1260 MHz bands for maximum flexibility
- Superior RF Efficiency & Robustness: superior with 400 kHz equidistance in IEM mode
- Automatic Audio Power Limitation: Intelligently adjusts the output control by measuring the impedance of the in-ear headphones
- Prepared for Remote Control: Future-proof your workflow
- Exceptional Audio Quality & Channel Separation (>60 dB)
- True Diversity Reception
- Easy to Read Display – even in sunlight
- Four Working Modes: IEM Stereo Multiplex, IFB wideband, IFB narrow band and 3 channels IFB (new firmware v1.3.0)
- Noise Squelch Protection (IFB mode): looks at the quality of the signal
- Tone Squelch Detection (IFB mode): for full compatibility with Wisycom transmitters
- Multi-companding operations (IFB mode): ENS, ENR and ENC (new firmware v1.3.0)
- Easy to Service: Easily replaceable RF connector via special tool
- IP65 rating protection
| Category | Specification | Detail |
| RF & Wireless | Frequency Ranges |
 470-800 + 823-832 + 940-960 + 1240-1260 MHz
|
| RF & Wireless | Switchable Channels |
 2400, managed in 40 groups of 60 frequencies completely user  customizable
|
| RF & Wireless | Switching-Window | Â 379 MHz |
| RF & Wireless | Frequencies |
 Quartz PLL frequency synthesizer circuit (5 kHz step width)
|
| RF & Wireless | Frequency Error |
 < ± 2.5 ppm, within the rated temperature range
|
| RF & Wireless | Diversity Technique | Â True diversity |
| RF & Wireless | Modulation |
 IEM Stereo Multiplex (200kHz RF BW) | IFB Wideband (200kHz RF BW) |   IFB Narrowband (100kHz RF BW) | 3ch-IFB (200kHz RF BW)
|
| RF & Wireless | Peak Deviation |
 ±48 kHz (IEM Stereo) | ±56 kHz (IFB Wideband) | ±35 kHz (IFB  Narrowband) | ±56 kHz (3ch-IFB)
|
| RF & Wireless | Antenna Inputs | Â A / “B” SSMA connectors |
| RF & Wireless | Antenna Input Impedance | Â 50 ohm (SWR < 1:2; typ. 1:1.4) |
| RF & Wireless | Sensitivity |
 2 μV (6 dBμV), for SND/N > 52 dB (in the whole switching-window)
|
| RF & Wireless | Spurious Emissions | Â < 2 nW (typical = 0.1 pW) |
| Audio Performance | Noise Reduction System |
 ENS (Wisycom sound optimized IEM/IFB) | ENR (Wisycom noise optimized  IFB) | ENC (Wisycom voice optimized) | 3ch-ENS (Wisycom voice  multichannels optimized 3ch-IFB)
|
| Audio Performance | AF Bandwidth |
 30 Hz – 15 kHz (IEM Stereo) | 45 Hz – 20 kHz (IFB Wideband) | 45 Hz – 17   kHz (IFB Narrowband) | 100 Hz – 7 kHz (3ch-IFB)
|
| Audio Performance | Frequency Response |  ± 0.5 dB in the 30 Hz ÷ 15 kHz range |
| Audio Performance | Distortion | Â 0.3 % typical |
| Audio Performance | SND/D Ratio | Â 90 dB typical |
| Audio Performance | Stereo Separation | Â > 60 dB |
| Audio Outputs | Headphone Output |
 Stereo Plug 3.5mm (TRS) Locking (M6 x 0.5 thread), 2 x 125 mW @ 16  Ohm
|
| Interfaces & Controls | Managing Interface |
 Remote control interface (Bluetooth and LoRa) and proprietary waterproof  magnetic connector 5 pin (USB HS +power)
|
| Interfaces & Controls | LEDs |
 2 RGB LEDs (red, green and blue) for audio, RF and battery status
|
| Interfaces & Controls | Display |
 Graphic high resolution display 180×350 px
|
| Power | Powering |
 2 x IEC-LR6 1.5V size-AA alkaline or rechargeable elements
|
| Power | Battery Life |
 Approx. 3.5 hours (alkaline batteries), 6.5 hours (LBPXL lithium batteries)
|
| Physical | Temperature Range |  -10 ÷ + 55 °C |
| Physical | Dimensions (H x W x D) | Â 93.3 x 61 x 22.4 mm |
| Physical | Weight | Â Approx. 140 g (without battery) |
