WISYCOM MAT244 – Wideband Programmable Matrix Combiner
Wisycom MAT244-X1 wideband combiner 8:1 or 8:4 or 4:2, 150-1160 MHz
Price range: € 2,950.00 through € 3,250.00 Excl. VAT

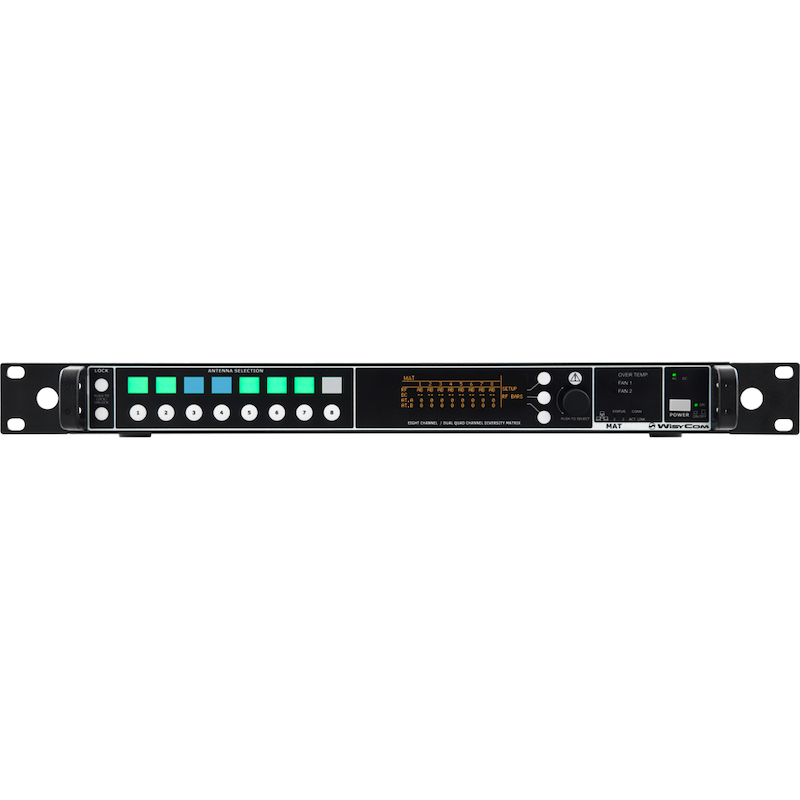

MAT244 is very flexible combiner especially designed to manage RF in a multi-site production environment.
It can:
– route RF in several possible configurations
– control antenna remotely,
– manage attenuation/boost for the different areas,
– monitor RF and interferences thru and integrated RF meter.
All of this can be done remotely thanks to an Ethernet interface and a very intuitive PC software.
MAT244 can be configure locally of by SW as a diversity combiner 4:2 with 6dB gain or in a non-diversity combiner 8:4 / 8:1
FEATURES
- Combiner mode: diversity 4:2 / non-diversity 8:1 or 8:4 (SW configurable)
- Wide bandwidth 150-1160 MHz operation
- Remote management and monitor of alarms thru Ethernet 10/100 base TX
- Antenna booster supply toggled on each input independently
- Voltage and current monitoring on each booster supply with alarm
- Programmable attenuators on each inputs
- Remote boost control (for gain/bandwidth) with a bidirectional data link thru coax (input BNCs)
- light window where the user can enter their own text to identify the 8 areas
| Category | Specification | Detail |
| RF & Wireless | Frequency Ranges |
 150 ÷ 840 MHz (MAT244) | 150 ÷ 960 MHz (MAT244-X) | 150 ÷ 1160  MHz (MAT244-X1)
|
| RF & Wireless | Input/Output Gain |
 7 dB (Combiner 8:1) | 0 dB (Combiner 8:4) | 7 dB (Combiner 4:2)
|
| RF & Wireless | OIP3 |
 30 dBm typ. (Combiner 8:1) | 24 dBm typ. (Combiner 8:4) | 30 dBm typ.  (Combiner 4:2)
|
| RF & Wireless | Amplifier Linearity |  ± 1 dB (typical) |
| RF & Wireless | Noise Figure | Â 5.5 dB (each channel) |
| RF & Wireless | Antenna Booster Powering |  +12Vcc / 800mA MAX for ports 1A, 1B [2×4:2 conf] or for port 1,5 [other  configuration] +12Vcc / 230mA MAX (other ports) |
| RF & Wireless | Connector | Â Input: 8 BNC-F | Output: 4 BNC-F |
| RF & Wireless | Impedance |  50 Ω |
| Interfaces & Controls | Managing Interface | Â 10/100 Base TX Ethernet port |
| Interfaces & Controls | Display | Â 64 x 256 OLED (yellow) |
| Power | Power Supply |
 AC connector 90÷264Vac /47÷63Hz, (fuse protected) T2A-50W max
|
| Physical | Temperature Range |  -25 ÷ +55 °C |
| Physical | Material | Â Aluminum |
| Physical | Finishing | Â Black varnish |
| Physical | Dimensions (H x W x D) | Â 44 x 483 x 398 mm |
| Physical | Weight | Â 3.7 Kg |
| Version | MAT244-X1, MAT244-X1-DC power supply |
|---|
