LECTROSONICS SRC DUAL CHANNEL RECEIVER

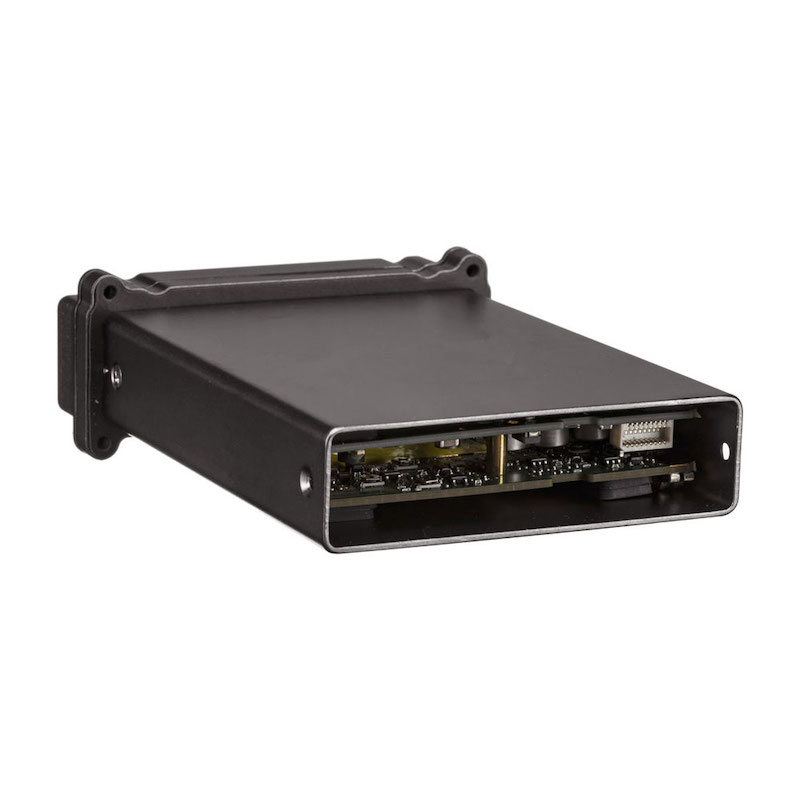

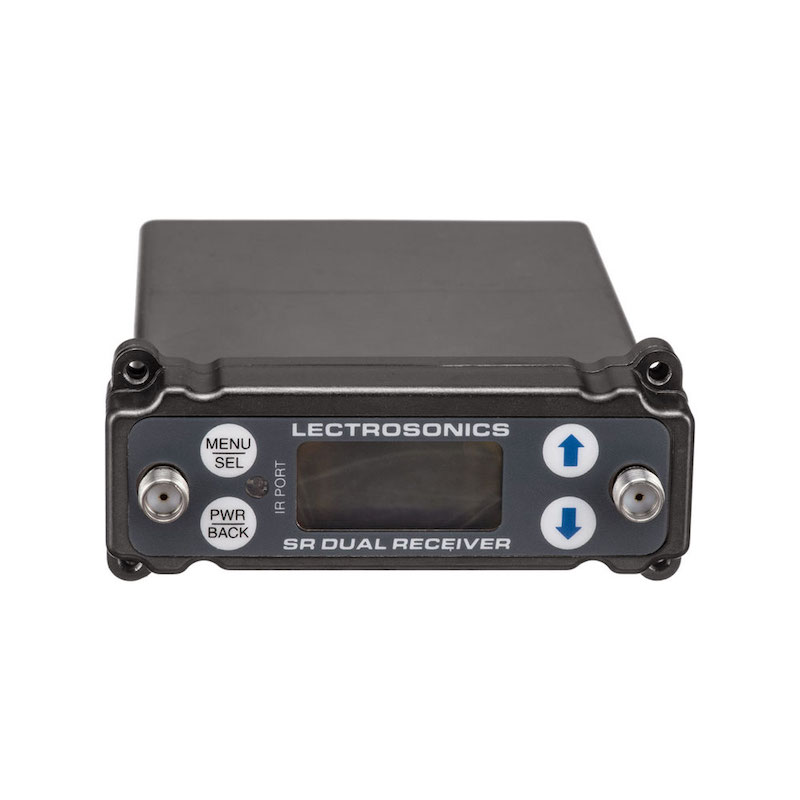

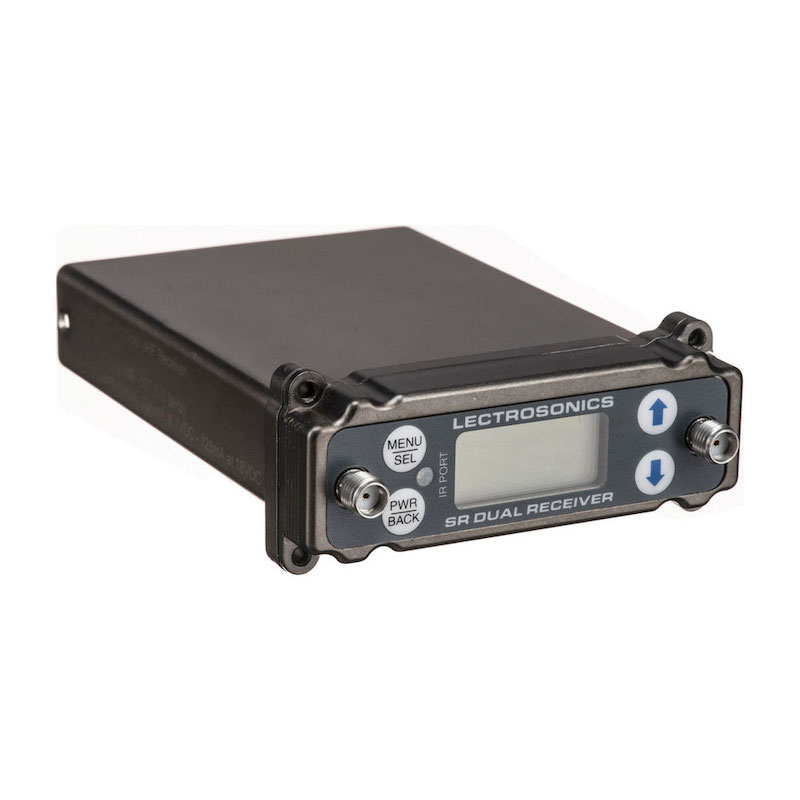

The SRc is an ultra-compact dual channel receiver built into a sturdy housing with adapters for video camera receiver slots and for stand-alone use. Digital Hybrid Wireless® technology provides superb, compandor-free audio quality and compatibility with other wireless systems. The RF performance is extremely stable over a very wide temperature range, making the receiver perfectly suited to the rough environmental conditions found in field production.

DSP compatibility modes allow the receiver to be used with a variety of Lectrosonics systems, other brands of wireless systems and with Lectrosonics IFB transmitters.

FEATURES

• Fits camera “slots,” Lectrosonics Duopack adapter and Octopack multicoupler, and operates stand-alone with various adapters
• Tunes over a 75 MHz range* (3 blocks)
• Dual receiver design for two channels with phase switched diversity or single channel with ratio diversity operation
• Digital Hybrid Wireless® with compatibility modes for use with other transmitters
• Tracking front-end filters for high performance in tough RF environments
• LCD with RF spectrum scanning
• SmartSquelchTM DSP-controlled, noise based filtering and squelch
• DSP-based pilot tone for squelch control
• IR sync port for quick transmitter setup (LMb, LT, HHa, HMa, & SSM)
• SmartTune operation for quick and confident frequency selection

FREQUENCY RANGES:

• A1 – 470-537 MHz or Blocks 470, 19 & 20.
• B1 – 537-614 MHz or Blocks 21, 22 & 23
• C1 – 614-691 MHz or Blocks 24, 25 & 26

SPECIFICATIONS
