AUDIOROOT – USB-C power bridge adapter

Historically, running a location sound bag off wall power required carrying a heavy, single-purpose AC-to-DC power brick with proprietary audio connectors. The Audioroot EPSB (USB-C PPS Power Bridge) revolutionizes this workflow by bridging the gap between ubiquitous USB-C IT infrastructure and professional 12V-15V audio ecosystems.

Engineered with an advanced integrated circuit, the EPSB acts as an active protocol trigger. When plugged into a compatible USB-C Power Delivery (PD 3.0) or Programmable Power Supply (PPS) source—such as the eSTUFF 120W, the SIIG 100W Charging Station, or a high-output laptop power bank—the EPSB executes a hardware handshake. It bypasses standard 5V USB output and explicitly commands the power source to deliver a stable, regulated 15V high-current profile.

This 15V output perfectly mimics the nominal voltage of a fully charged Li-Ion eSMART battery. By simply connecting the EPSB, you can power your Audioroot distributor (such as the BG-DU) or your high-draw Sound Devices recorder directly from a standard USB-C wall charger. It is the ultimate lightweight backup solution for demanding documentary shoots, and a clean, consolidated AC-power method for stationary cart setups.

Available output connector options:

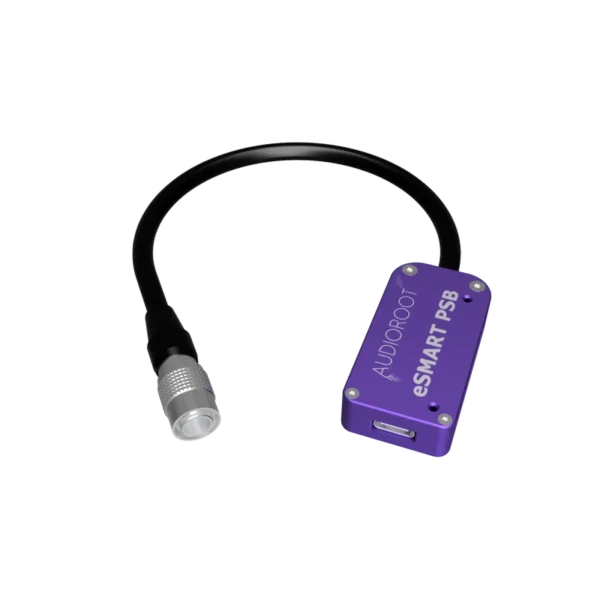

• HRS4

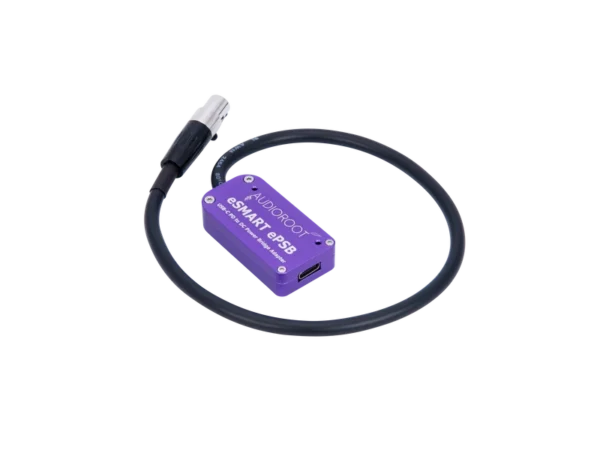

• TA4F

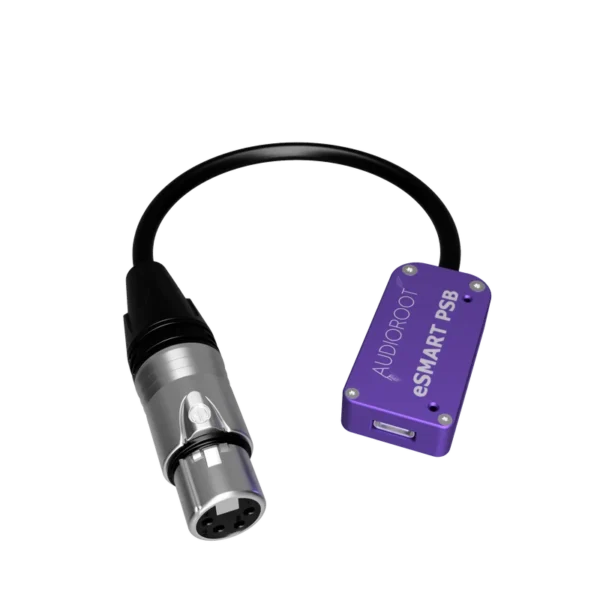

• XLR4F

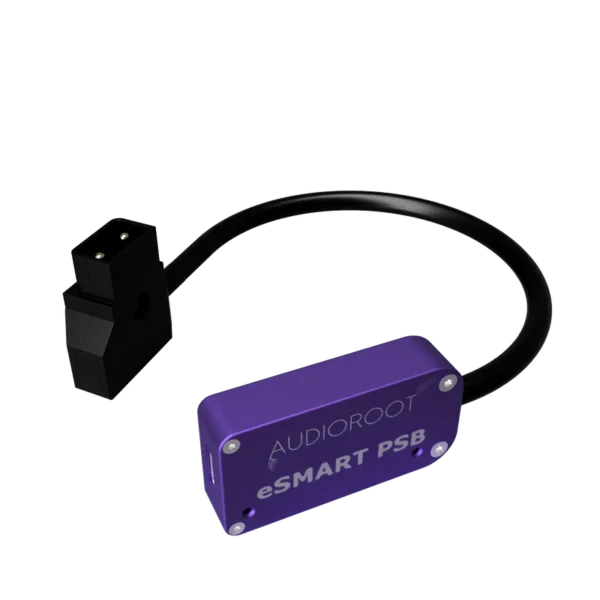

• D-Tap

Technical Specifications & Advantages:

• Active Protocol Negotiation: Built-in IC chip handshakes directly with PD/PPS controllers, forcing the USB-C source to output a strict, regulated 15V profile (preventing the system from defaulting to 5V).

• Universal AC Replacement: Eliminates the need to pack a dedicated 4-pin Hirose AC power supply. Use the same high-wattage GaN USB-C wall charger that powers your MacBook to run your entire sound bag.

• Emergency Redundancy: Turn any high-capacity, 65W+ USB-C laptop power bank into an emergency battery for your audio bag if your eSMART cells are depleted in the field.

• Seamless Ecosystem Integration: Designed to integrate flawlessly into the Audioroot power distribution chain, providing clean, ripple-free DC current to sensitive audio DSPs and RF receivers.

• Ultra-Lightweight & Low Profile: An essential, zero-footprint addition to your Pelican case that drastically expands your powering options on location.
